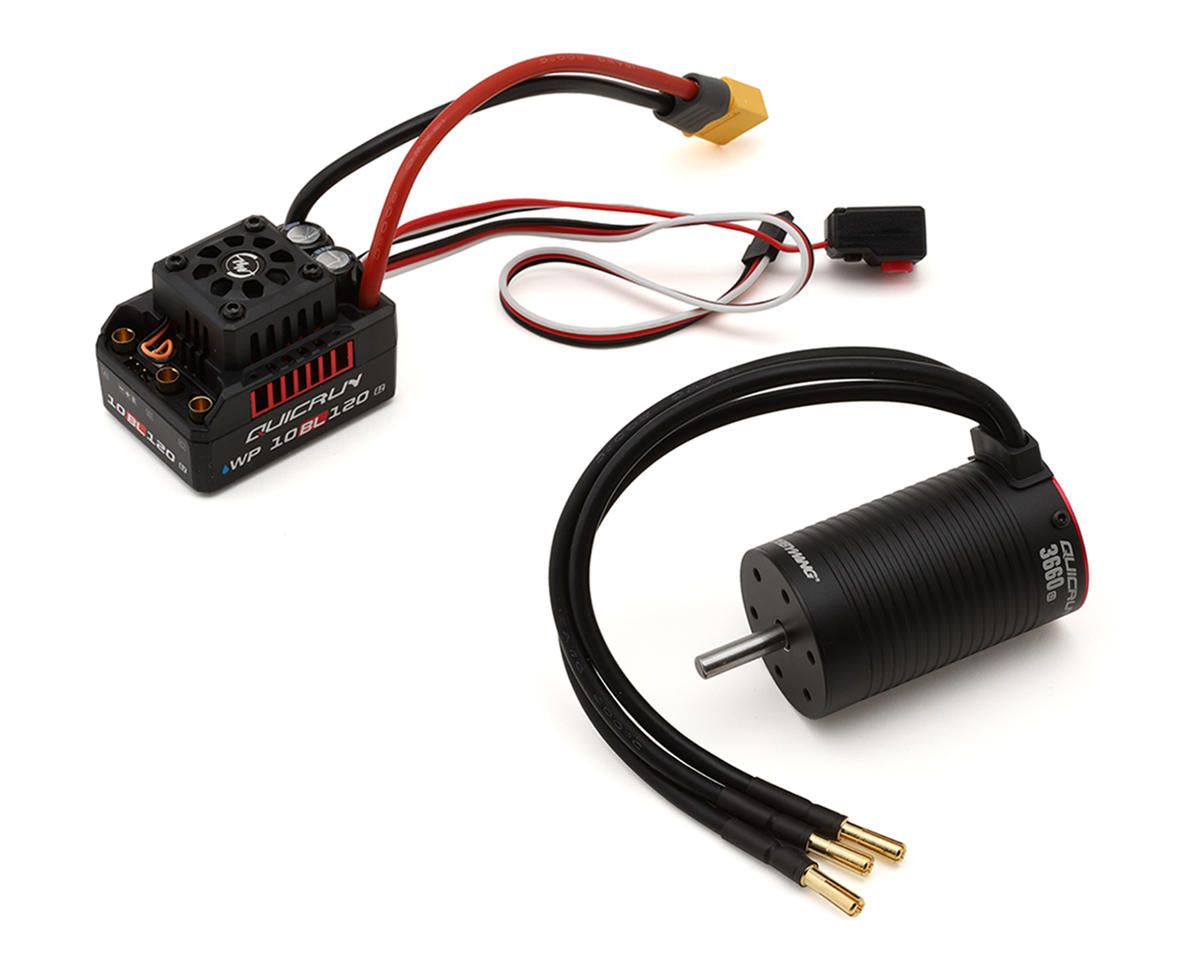

Hobbywing QuicRun 10BL120 G2 120A ESC & 3660SL G2 Motor Combo

Engineered for high performance and durability, the Hobbywing QuicRun 10BL120 G2 ESC and 3660SL G2 motor combo delivers powerful sensorless brushless performance for 1/10 scale RC vehicles. This combo features a robust, dust-resistant motor and a fully waterproof ESC (rated IP67), making it a reliable option for a variety of off-road and on-road applications. With built-in capacitors, smart thermal protection, and advanced freewheeling technology, this combo provides consistent power and enhanced efficiency.

ESC Features (QuicRun 10BL120 G2):

  • Sensorless brushless design

  • Intelligent freewheeling for smoother operation

  • Capacitor thermal protection to reduce overheating

  • Integrated capacitor for better stability and brownout protection

  • Powerful internal BEC: 6V/7.4V at 5A

  • Fully waterproof (IP67 rated)

  • Efficient heat dissipation with an advanced cooling system

Motor Features (QuicRun 3660SL G2 - 3700kV):

  • High-efficiency 4-pole rotor for better torque and throttle response

  • Over 10% increase in power and efficiency compared to earlier models

  • Runs cooler under load for improved longevity

  • 0.2mm silicon steel laminations and high-temp resistant windings

  • Reinforced rotor and premium-grade bearings for extra durability

ESC Specifications:

  • Application: 1/10 scale

  • Type: Brushless, Sensorless

  • Waterproof: Yes (IP67)

  • Continuous Current: 120A

  • Peak Current: 760A

  • Input Voltage: 2S–4S LiPo

  • BEC Output: 6V/7.4V @ 5A

  • Connector Type: 4.0mm bullets

  • Dimensions: 52.8x39.8x38.2mm (2.07x1.56x1.50")

  • Weight: 119g (4.19oz)

Motor Specifications:

  • Input Voltage: 2S–3S LiPo

  • KV Rating: 3700kV

  • Poles: 4

  • Diameter: 36mm (1.42")

  • Length: 60mm (2.36")

  • Shaft Diameter: 5mm (0.20")

  • Shaft Length: 18.5mm (0.73")

  • Front Bearing: D16D5T5

  • Rear Bearing: D13D5T4

  • Weight: 273g

Included:

  • (1) QuicRun 10BL120 G2 Sensorless Brushless ESC

  • (1) QuicRun 3660SL G2 Sensorless Brushless Motor (3700kV)
